Understanding the Swing Curve: Power Angle vs. Time Plot

In the study of power system stability, particularly transient stability, the behavior of synchronous machines following a disturbance is analyzed. A key parameter in this analysis is the power angle (δ), which represents the angle between the rotor of a synchronous machine and a synchronously rotating reference frame.

When a power system experiences a disturbance, such as a fault, the balance between the mechanical input power to the generator and the electrical output power is disrupted. This imbalance causes the rotor of the synchronous machine to accelerate or decelerate, leading to oscillations in the power angle (δ).

To understand how the system's stability is affected, engineers plot the power angle (δ) against time (t). This specific plot is universally known as the swing curve.

The swing curve provides a visual representation of the rotor dynamics and allows for the assessment of whether the power angle oscillations will eventually settle to a steady state (indicating stability) or continue to increase (indicating instability).

Analysis of the Options:

• Swing curve: This is the plot of the power angle (δδ) versus time (tt). This is the correct definition.
• Power curve: This typically refers to the plot of electrical power output versus the power angle (PePe​ vs. δδ). This is not a plot against time.
• Critical clearing angle: This is a specific maximum value of the power angle that the rotor can reach before a fault is cleared while still maintaining stability. It is a single angle value, not a plot over time.
• None of the above: Since 'Swing curve' is the correct term, this option is incorrect.

Therefore, the plot between the power angle and time is called the swing curve.

Correct option: 75 MW and 150 MW

Since both generators have the same 5% speed regulation, their load sharing is proportional to their ratings.

Generator ratings:

• X = 150 MW
• Y = 300 MW

So load-sharing ratio:

Understanding Skin Effect Dominance in Heating Methods

The question asks where the skin effect is most prominently observed among the given heating methods. The skin effect refers to the tendency of an alternating electric current to become distributed within a conductor such that the current density is greater at the surface of the conductor than at its core. This phenomenon is highly dependent on the frequency of the current and the properties of the conductor.

Analyzing the Heating Methods

Let's examine each option to see how the skin effect applies:

• Induction heating: This method utilizes high-frequency alternating currents passed through a coil surrounding a conductive material. The rapidly changing magnetic field induces eddy currents within the material. Due to the skin effect, these eddy currents are concentrated near the surface of the conductor. The high frequencies used (typically kHz to MHz range) cause the skin effect to be very significant, leading to substantial surface heating. In fact, induction heating deliberately exploits the skin effect for efficient heating.
• Resistance heating: This method involves passing current through a resistive material, converting electrical energy into heat. It often uses direct current (DC) or lower-frequency AC. At lower frequencies, the skin effect is minimal, and the current distributes relatively uniformly throughout the conductor's cross-section. Therefore, the skin effect is not a dominant factor in typical resistance heating applications.
• Dielectric heating: This process heats electrically insulating materials (dielectrics) using alternating electric fields, typically at radio or microwave frequencies. It relies on the dielectric material's properties and internal molecular friction, not on current flow within a conductor. The skin effect, which relates to current distribution in conductors, is not relevant to dielectric heating.
• Infrared heating: This is a method of heat transfer using electromagnetic radiation in the infrared spectrum. Objects absorb this radiation and heat up. It does not involve the flow of electric current through conductors as the primary heating mechanism, making the skin effect irrelevant.

Conclusion on Skin Effect Dominance

Comparing the methods, induction heating relies heavily on high-frequency alternating currents, which causes the skin effect to be highly pronounced. The concentration of current and subsequent heating occurs primarily at the surface of the workpiece. This makes the skin effect a defining and dominant characteristic of induction heating, distinguishing it significantly from resistance, dielectric, and infrared heating methods where it is either minimal or non-existent.

Therefore, the skin effect is most dominantly observed in induction heating.

Correct answer: Overvoltages caused by the Ferranti effect.

In long EHV transmission lines, especially under light load or no-load conditions, the line’s capacitance causes a charging current. This can make the receiving-end voltage higher than the sending-end voltage, known as the Ferranti effect.

Shunt reactors absorb excess reactive power and help control this overvoltage.

Comparing DC Welding and AC Welding Advantages

When comparing DC (Direct Current) welding and AC (Alternating Current) welding, several factors determine which process is more advantageous for specific applications. The question asks in which aspect DC welding is generally more advantageous than AC welding among the given options: Arc stability, Power consumption, Efficiency, and Cost.

Understanding Arc Stability in Welding

Arc stability refers to the consistency and smoothness of the electrical arc during the welding process. A stable arc is crucial for achieving good penetration, a clean weld pool, and a high-quality finished weld with minimal spatter.

DC Welding vs. AC Welding Performance

• Arc Stability: DC welding typically offers superior arc stability compared to AC welding. In DC welding, the current flows in one direction, creating a consistent electrical field. This results in a more focused and steady arc, making it easier to control, especially for thinner materials or when precise heat input is required. DC welding provides a smoother operation and less spatter.
• Power Consumption & Efficiency: While modern DC inverter welders can be very energy-efficient, the overall power consumption and efficiency comparison between DC and AC welding can depend heavily on the specific type of welding machine (e.g., transformer vs. inverter) and the welding process being used (e.g., Stick, TIG, MIG). Historically, basic AC transformer welders were simpler and sometimes cheaper to operate, but advancements in DC inverter technology have often made them more power-efficient. However, arc stability is a more consistent and widely recognized advantage of DC over AC.
• Cost: The initial cost of welding equipment can vary. Basic AC welding machines might sometimes be less expensive than comparable DC machines, particularly older transformer-based models. However, advanced DC inverter machines offer portability and better performance features that can justify a higher cost. Cost is not universally a primary advantage for DC welding over AC.

Why DC Welding Excels in Arc Stability

The primary reason DC welding provides better arc stability is the constant polarity. This consistency allows for better control over the weld puddle and heat input. AC welding, by contrast, reverses polarity 120 times per second (at 60 Hz). This constant switching can sometimes lead to arc "popping" or instability, particularly noticeable when welding materials like aluminum with AC TIG, where specific techniques are needed to manage the arc.

Conclusion

Based on the typical performance characteristics in welding, arc stability is the aspect where DC welding demonstrates a more significant and consistent advantage over AC welding. This improved stability translates to better control, reduced spatter, and often higher quality welds, especially in applications requiring precision.

Correct answer: armature winding or field winding

A universal motor is a series motor. To reverse its direction, the relative direction of current between the armature and field must be reversed.

So, reverse the current through either:

Reversing both together will not reverse the direction.

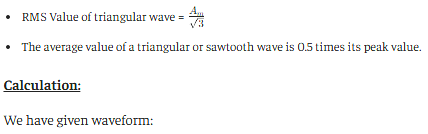

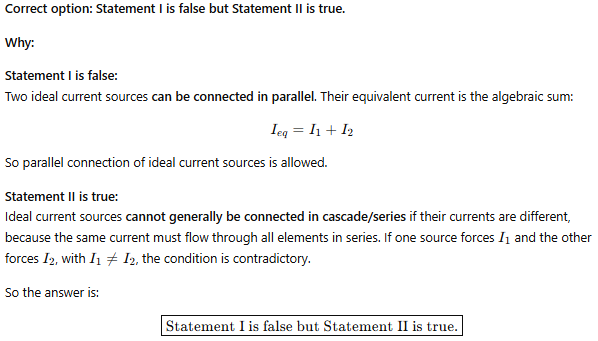

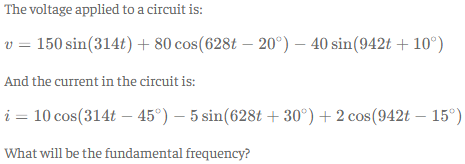

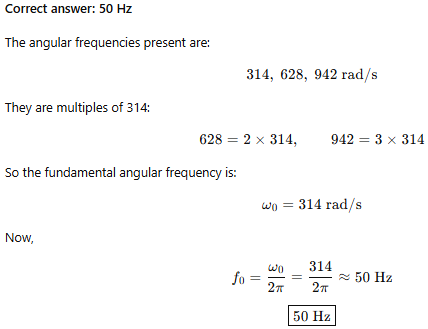

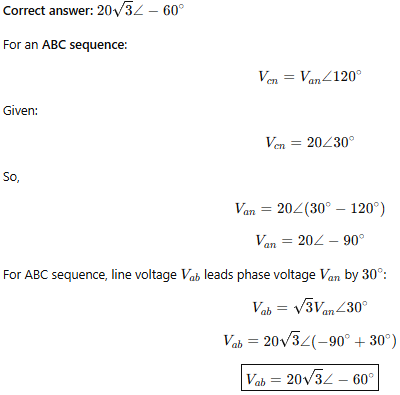

Form Factor:

• The ratio of the root means square value to the average value of an alternating quantity (current or voltage) is called Form Factor.
• The average of all the instantaneous values of current and voltage over one complete cycle is known as the average value of the alternating quantities.

Mathematically, it is expressed as:

Shortcut Trick
